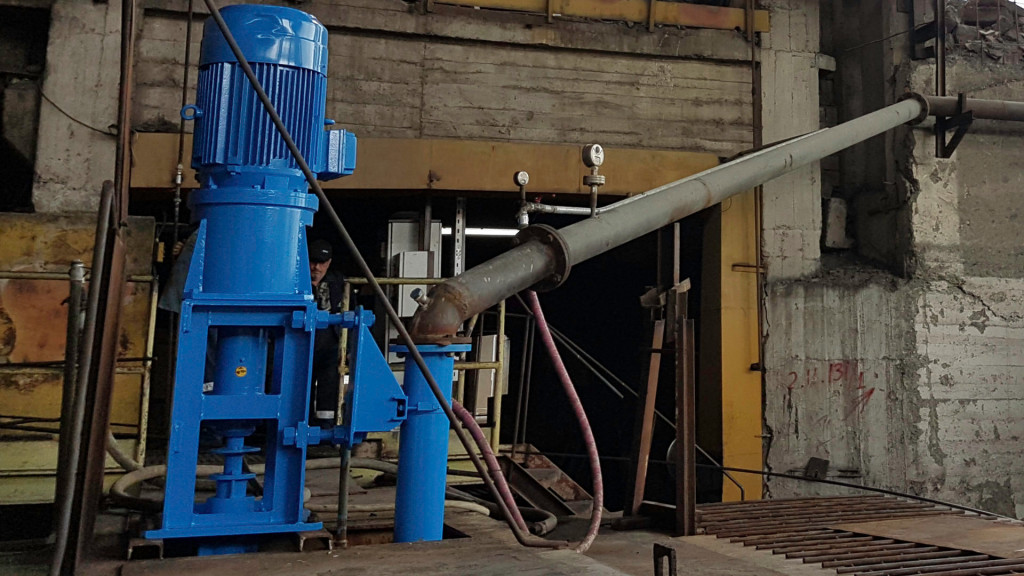

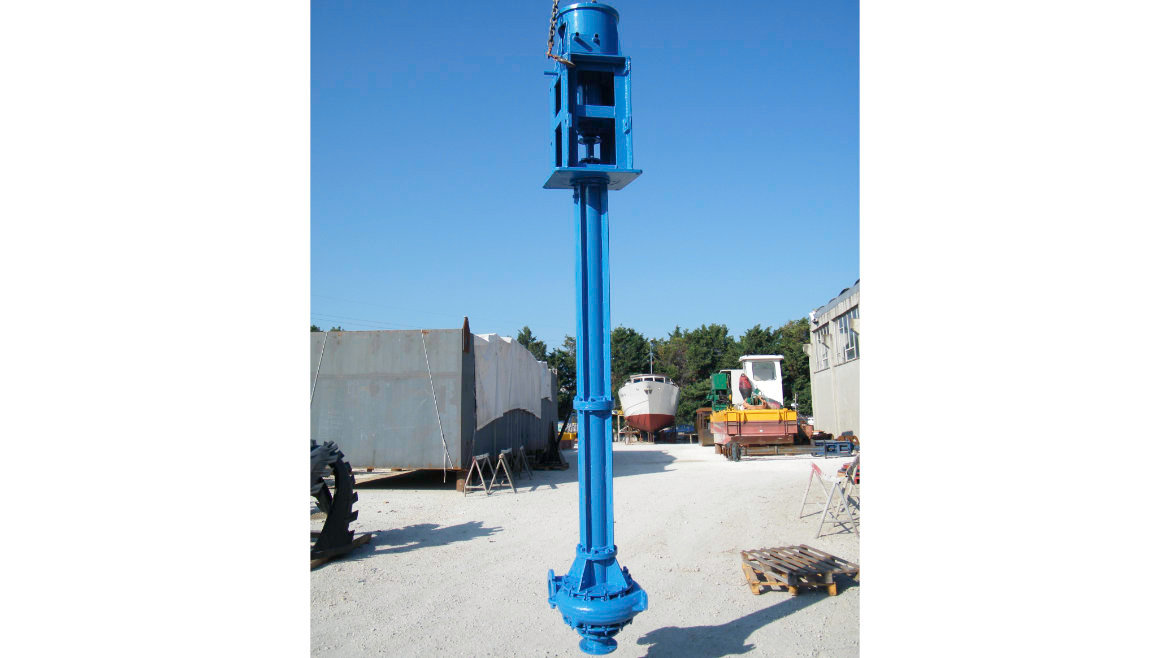

Vertical slurry pump
Italdraghe is active in the production of dredging components such as vertical dredging pumps for mining, building, metallurgical and other industries. Vertical slurry pumps are centrifugal slurry pumps which are submerged in sump to operate and projected for transporting abrasive, large particle and high density materials.
MAIN CHARACTERISTICS
Vertical shape that reduces installation space – variable operative length according to the needs
Provided with replaceable shaft protection sleeve
Designed for granting over-sized material passage
Enhanced abrasion resistance to high density or low density slurry – longer lifetime
Wear resistant
Easy maintenance
Applicable in dredging, metallurgical, mining, coal power and building industry
Lifetime technical support from the company
Spare parts constantly available from stock
| PDV 100 | PDV 125 | PDV 150 | PDV 180 | PDV 200 | PDV 250 | PDV 300 | ||
|---|---|---|---|---|---|---|---|---|
| Delivery diameter (mm) | Diametro di mandata (mm) | 100 | 125/150 | 150 | 180 | 200 | 250 | 300 |
| Suction diameter (mm) | Diametro di aspirazione (mm) | 100 | 150 | 150 | 180 | 200 | 250 | 300 |
| Solid maximum size (mm) | DImensione massima del solido (mm) | 40 | 60 | 60 | 90 | 100 | 125 | 200 |
| Capacity (m3/h) | Capacità (m3/h) | 150 | 300 | 350 | 500 | 650 | 1000 | 1400 |
