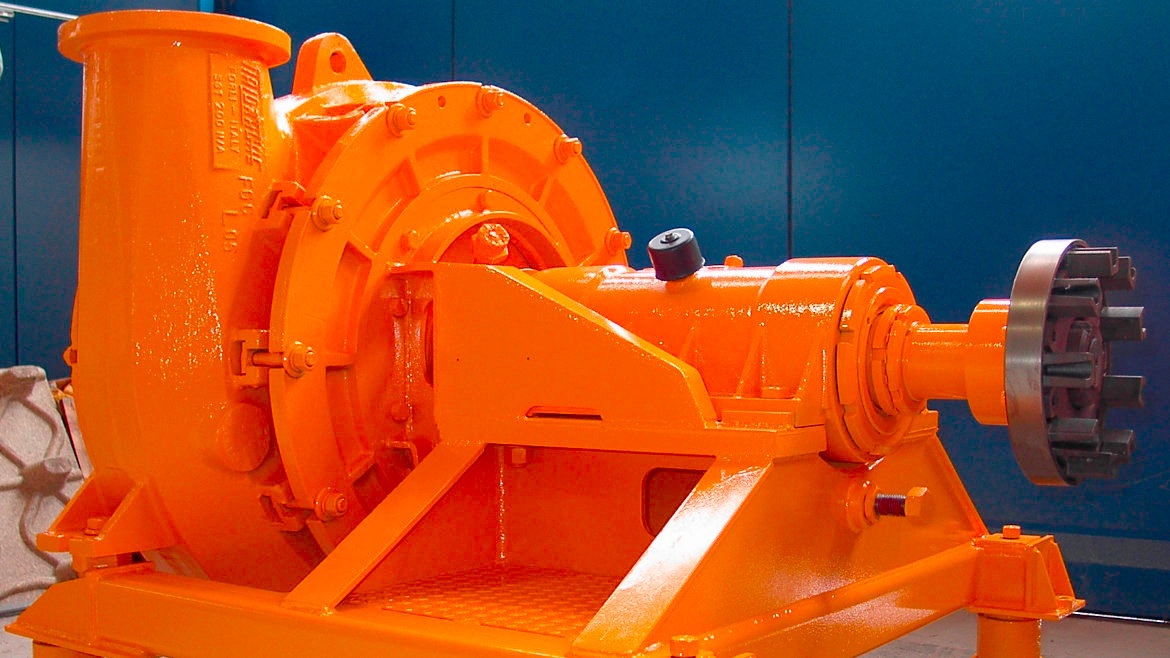

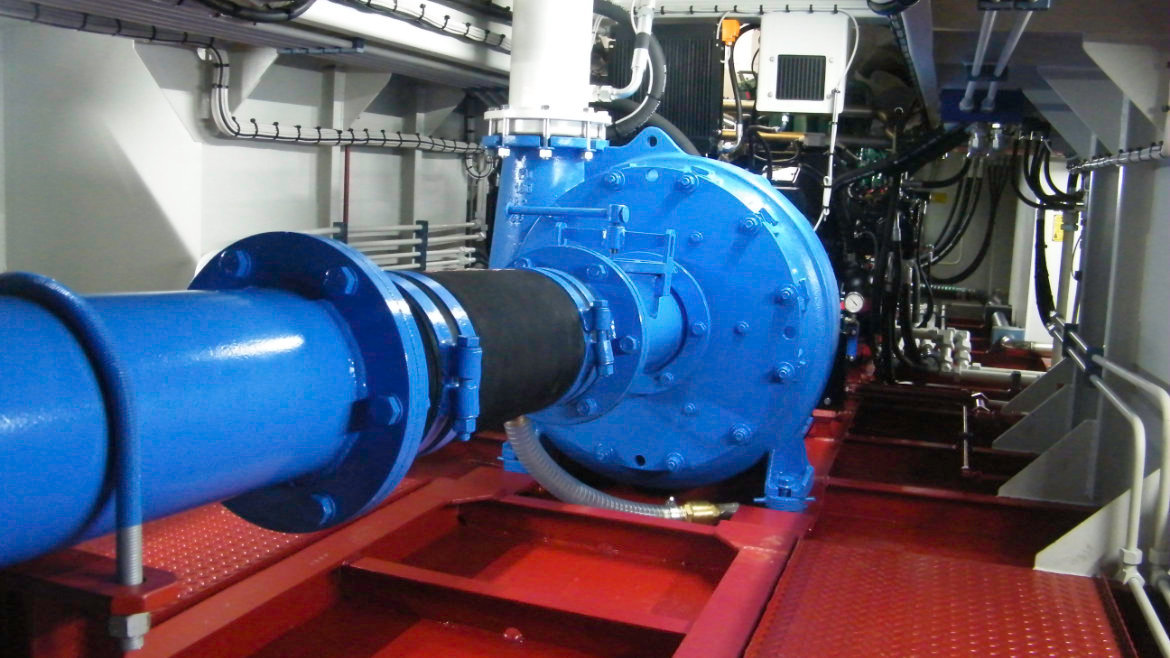

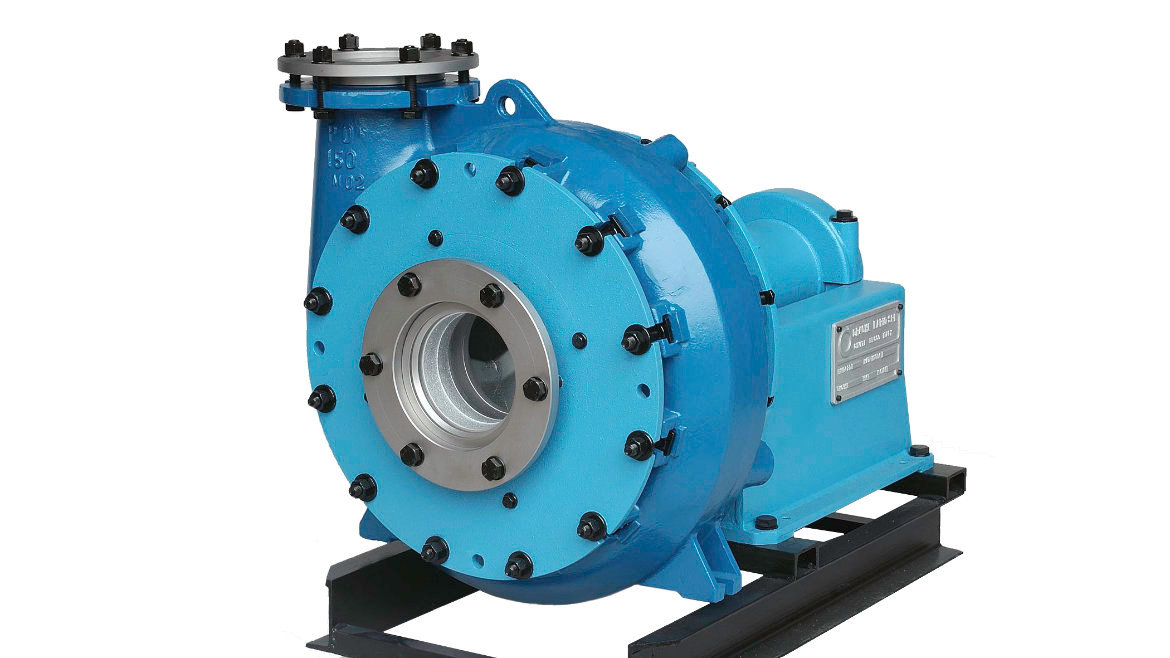

DREDGING pump
Beside the production of dredgers, Italdraghe is active in the production of dredging components such as dredging pumps for mining, dredging, building, metallurgical and multiple other industries. Dredging pumps are used in the dredging sector for slurry transport applications in many industries.
MAIN CHARACTERISTICS

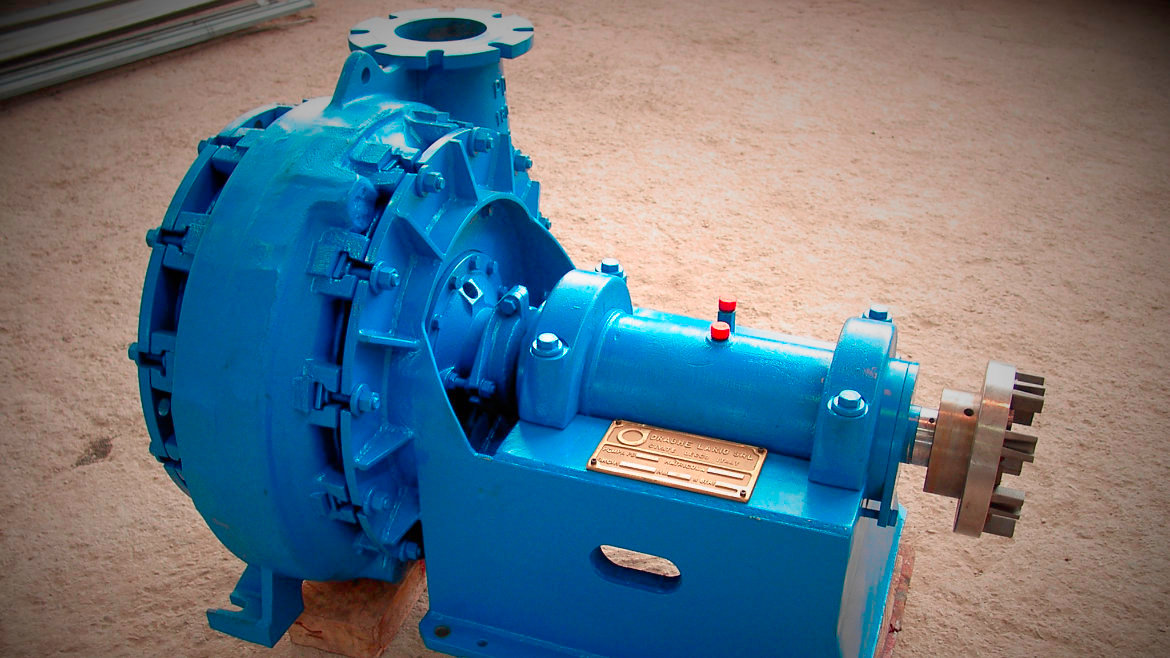

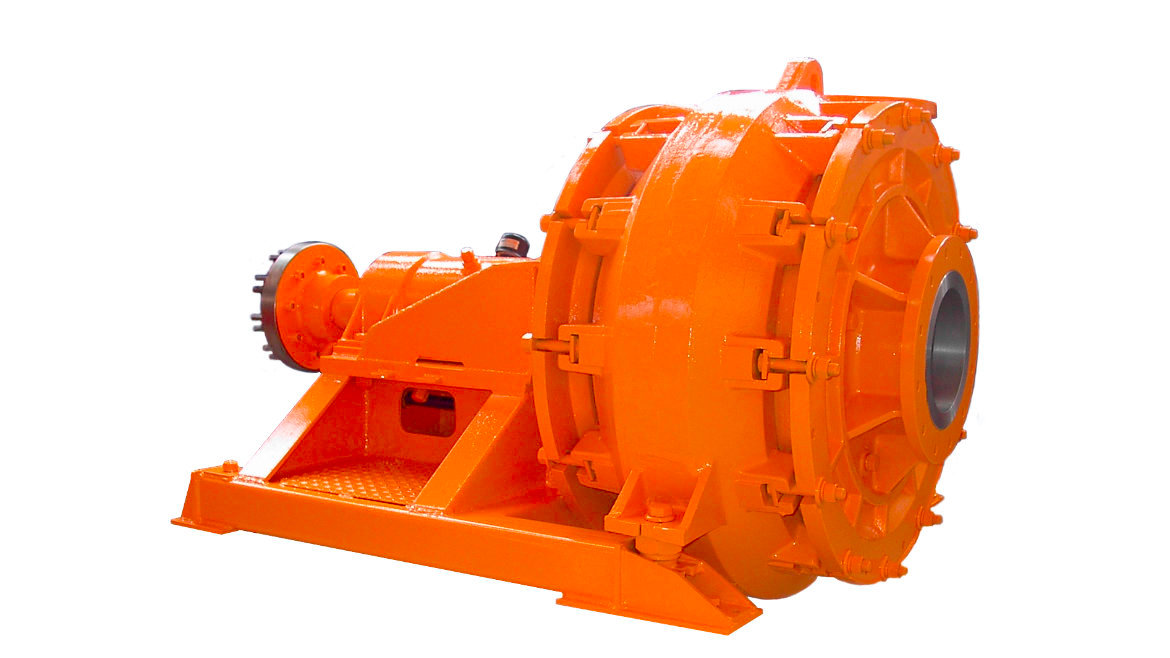

Available in multiple models for different applications – horizontal pump, RPV pump (pump with gear box integrated), submersible pump
Exceptional rate of pumping power
Specifically designed for granting over-sized material passage
Enhanced abrasion resistance to high density or low density slurry – longer lifetime
Easy and low cost maintenance
Lifetime technical support
Spare parts available from stock
SGT type:
| 250NB | 350N | 450 | 500R | 550N | 600N | 650 | 700 | ||
|---|---|---|---|---|---|---|---|---|---|
| Delivery diameter (mm) | Diametro di mandata (mm) | 250 | 350 | 450 | 500 | 550 | 600 | 650 | 700 |
| Suction diameter (mm) | Diametro di aspirazione (mm) | 300 | 400 | 500 | 500 | 600 | 700 | 750 | 800 |
| Solid maximum size (mm) | Dimensione massima del solido (mm) | 135 | 150 | 200 | 200 | 320 | 320 | 400 | 430 |
| Impeller diameter (mm) | Diametro girante (mm) | 800 | 920 | 1200 | 1200 | 1340 | 1350 | 1550 | 1650 |
PD type:
| 75 | 125 | 150 | 180 | 200 | 250R | 300 | 350R | 400R | 400 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Delivery diameter (mm) | Diametro di mandata (mm) | 83 | 125 | 150 | 180 | 200 | 250 | 300 | 350 | 400 | 400 |
| Suction diameter (mm) | Diametro di aspirazione (mm) | 100 | 150 | 180 | 200 | 230 | 300 | 350 | 350 | 400 | 450 |
| Solid maximum size (mm) | Dimensione massima del solido (mm) | 40 | 60 | 90 | 100 | 125 | 200 | 200 | 200 | 230 | 260 |
| Impeller diameter (mm) | Diametro girante (mm) | 290 | 360 | 460 | 565 | 660 | 600 | 920 | 920 | 1020 | 1120 |
