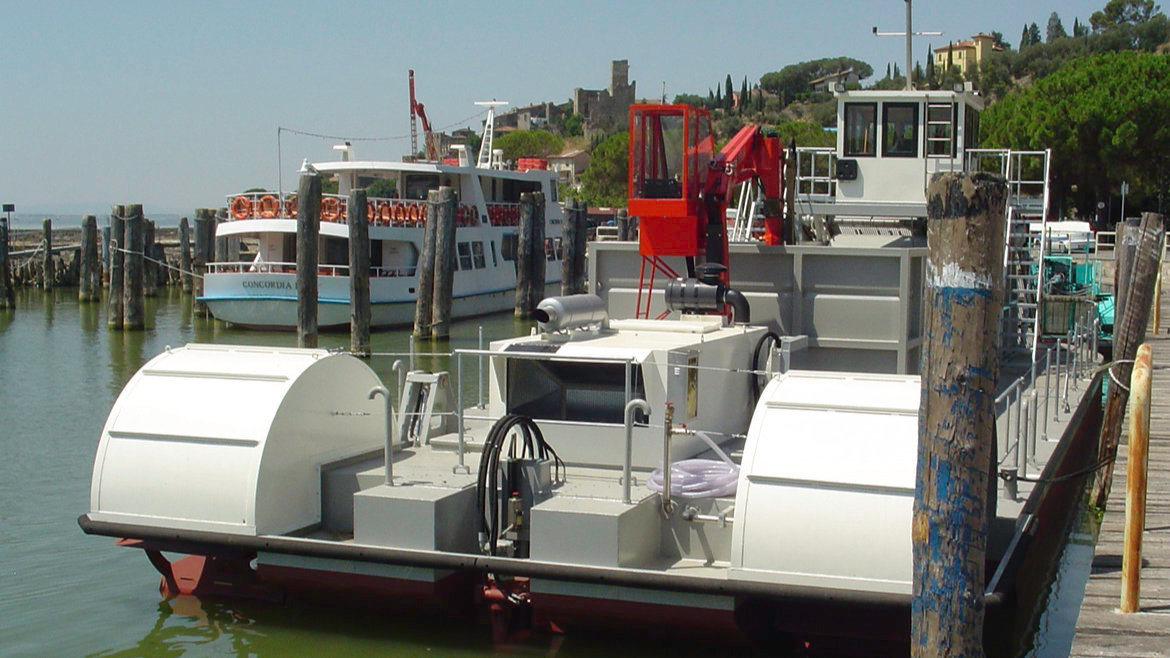

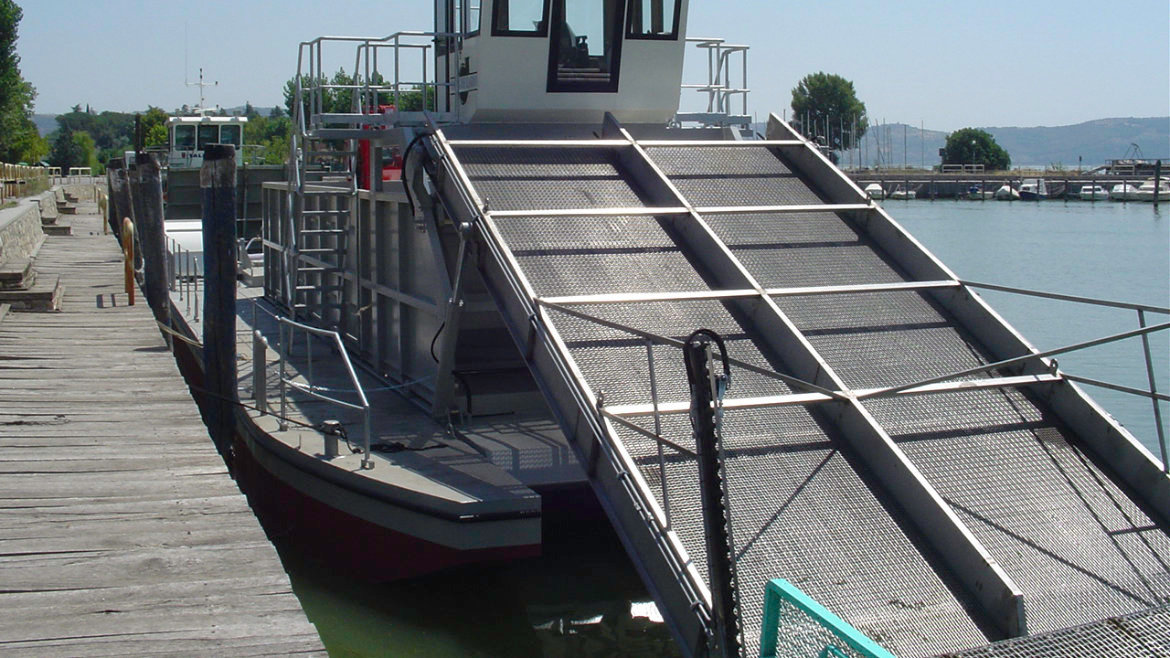

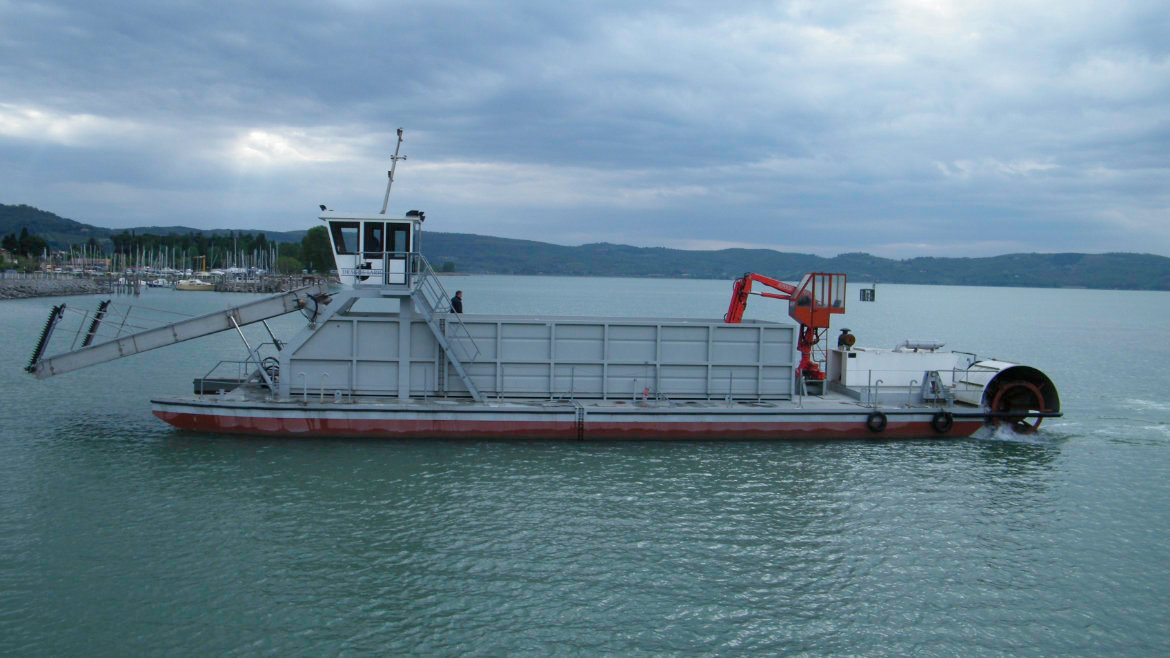

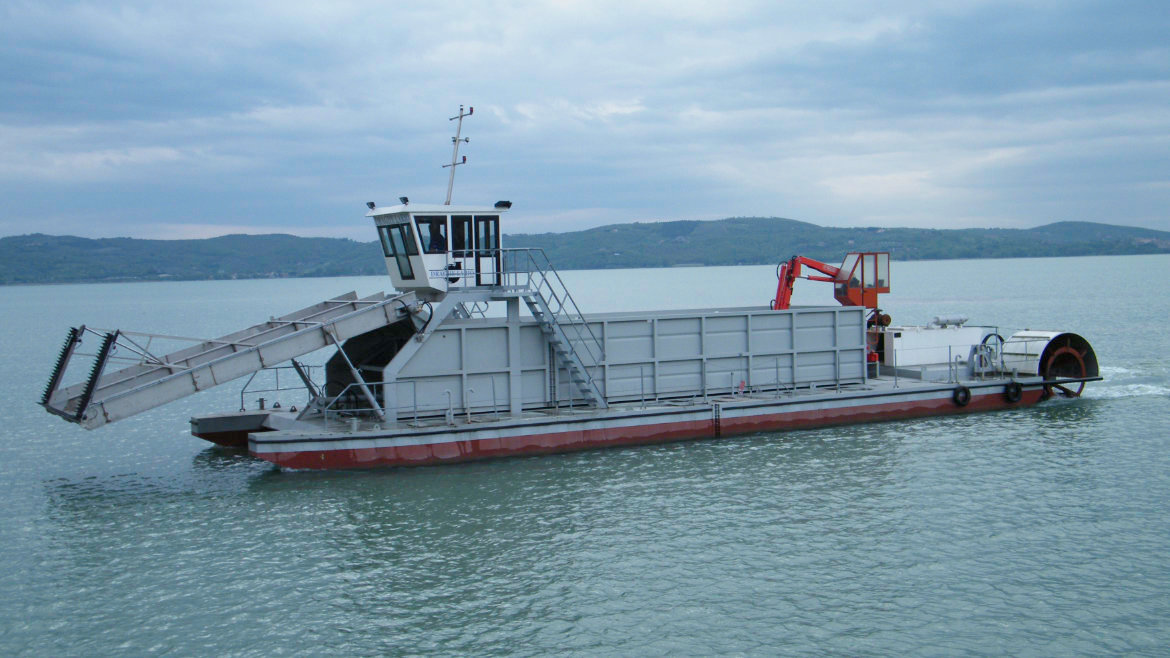

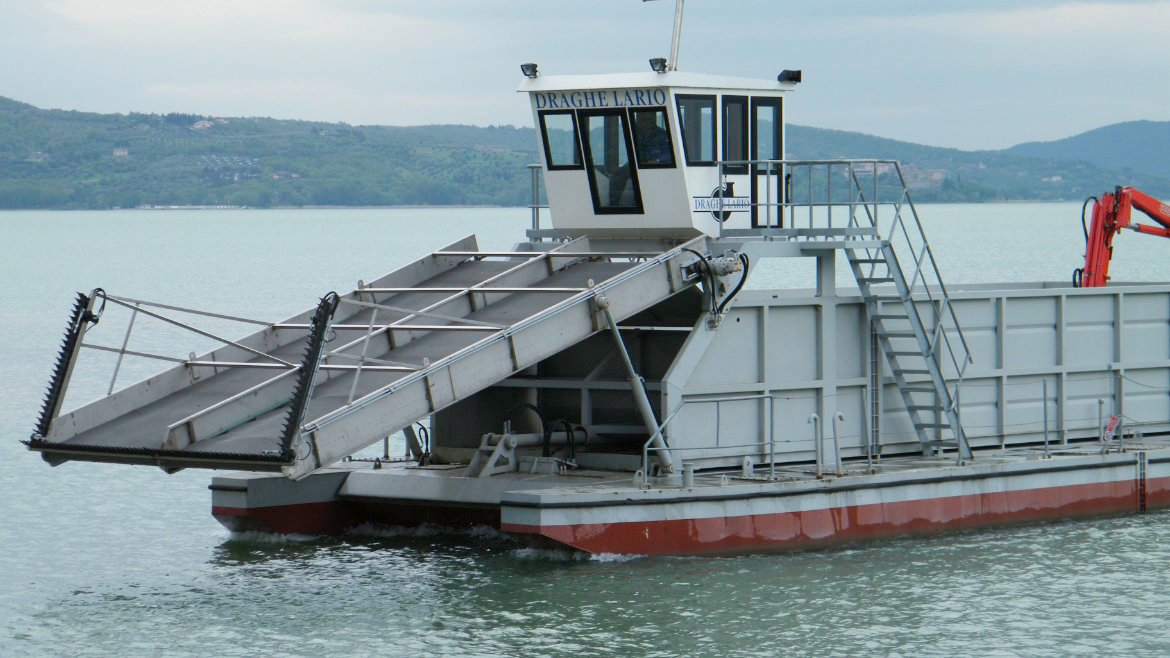

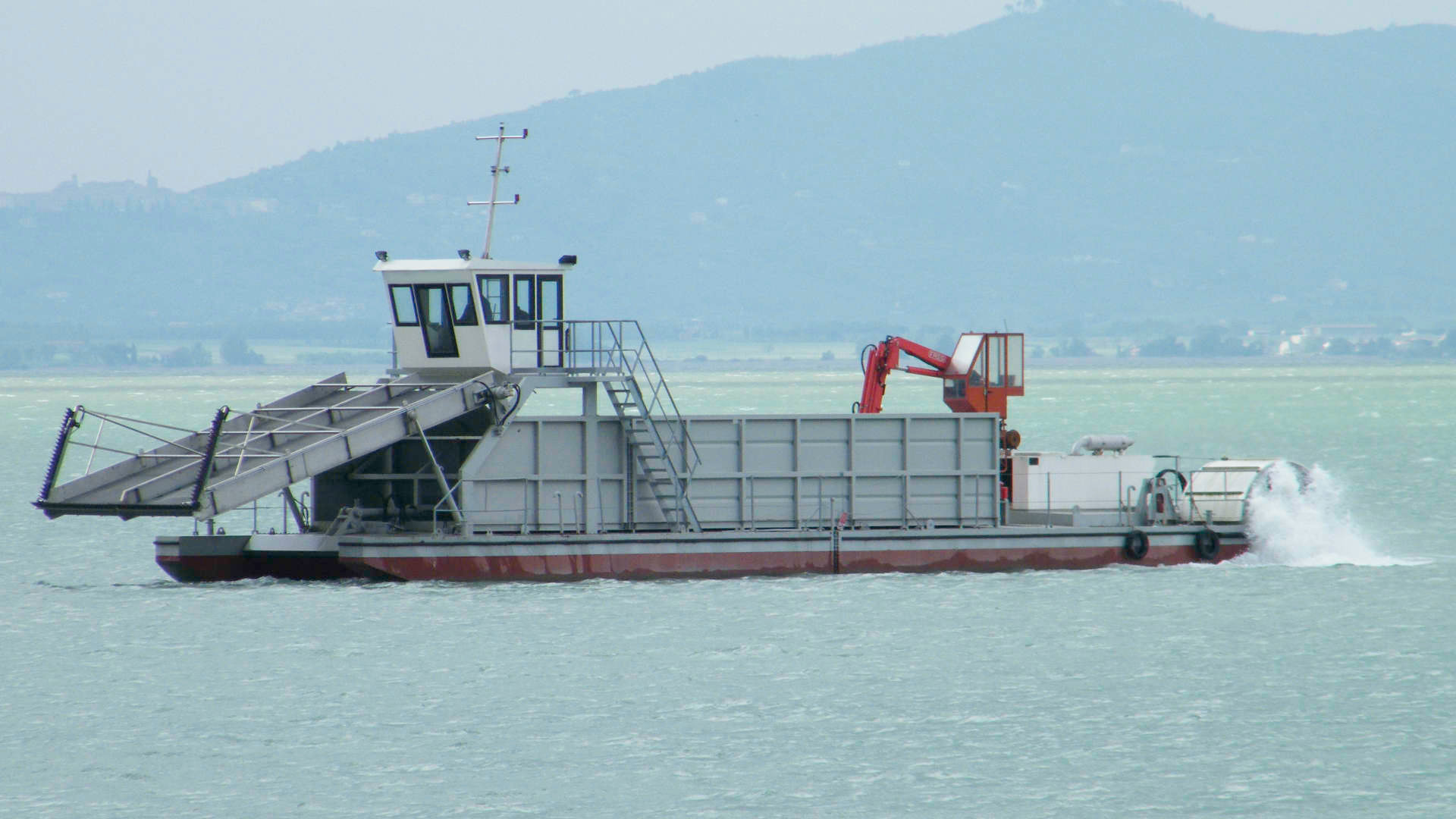

Harvester – Trasimeno model
Trasimeno Harvester is a machine designed for harvesting materials such as weeds and hyacinths that obstruct the passage of water in lakes, rivers and canals. Additionally, the harvester can be used as a skimmer for the harvesting of floating rubbish such as plastic and glass bottles, pieces of wood, cans and other materials.
MAIN CHARACTERISTICS
Available custom made to satisfy customer requests
Dismountable and transportable by road or sea
Maximum rationalization of downtime
Highly stocking capacity
Able of working in water and low bottoms
Lifetime technical support from the company
Spare parts constantly available from stock
| TRASIMENO | ||
|---|---|---|
| Operative length (m) | Lunghezza operativa (m) | 29,25 |
| Operative width (m) | Larghezza operativa (m) | 7,50 |
| Draught under operating conditions - full load (m) | Pescaggio in condizioni di lavoro - a pieno carico (m) | 0,70 |
| Power (kW @ rpm) | Potenza (kW @ rpm) | 230 @ 2100 |
| Operating cutting width (m) | Larghezza di taglio (m) | 3,90 |
| Operating cutting depth (m) | Profondità di taglio (m) | 1,40 |
| Average production (m2/h) | Produzione media (m2/h) | 3900 |
| Storage capacity (m3) | Capacità di carico (m3) | 120 |
| Propulsion - 2 independent hydraulic paddle wheels | Propulsione a mezzo di 2 ruote a pale idrauliche | from 0 to 48 rpm |
